Red Hat Mobile Cheat Sheet

The Basics

The Red Hat Mobile Application Platform is a platform for building, deploying and managing mobile applications & their backend integrations. It supports flexible development models, and allows developers to use tooling of their choice. Source code is integrated using Git, and the platform is agnostic to client-side mobile technology stack. The platform categorises its features in the following structure:

Projects
 |---Client Apps: Anything which will be deployed on a mobile phone device
 |---Cloud Apps: Node.js microservices used for all server-side logic specific to this project.
Services & APIs: Re-usable node.js microservices to be used by multiple projects.
Drag & Drop Apps (D&D herein): Forms-based rapid mobile app development functionality
|---Forms: Develop forms with no coding needed. Forms get associated projects.
|---Themes: Style D&D forms with an interactive theme builder. Themes get associated with projects.

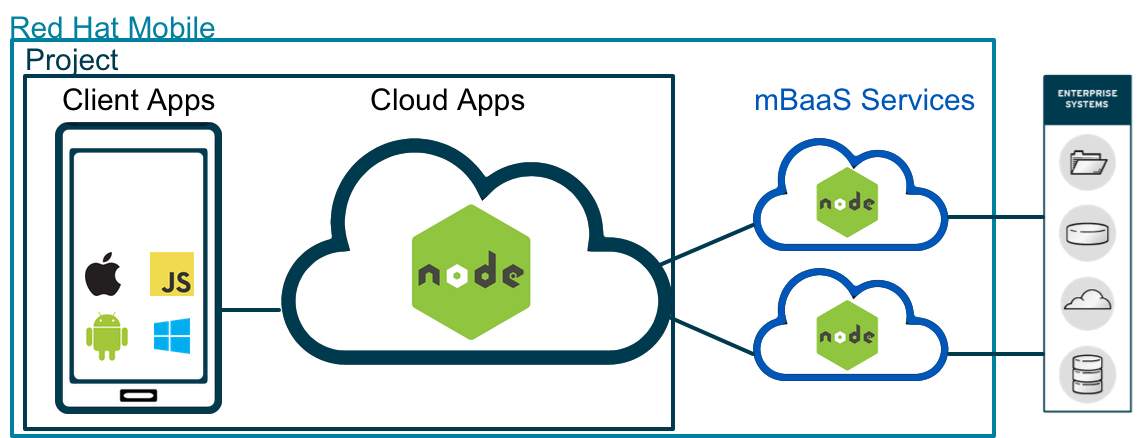

RHMAP diagram

Comparing Client Apps, Cloud Apps & Services

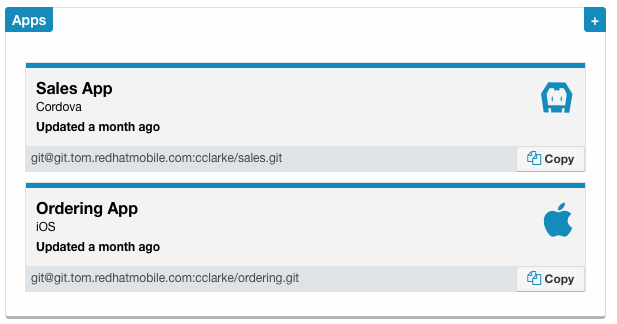

Client App

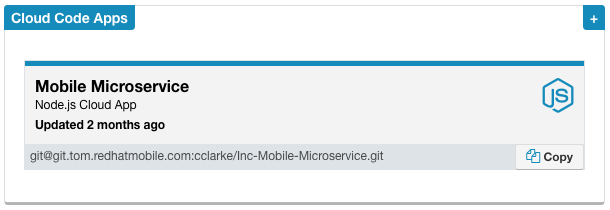

Cloud App

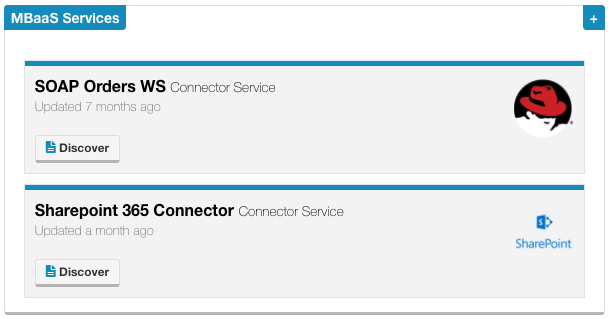

mBaaS Service

Client Apps Client Apps Client Apps
Purpose Building mobile phone apps Project-specific serverside logic & APIs Creating re-usable integrations for projects to consume
Programming language Various
(JS, ObjC, Java, Swift, ...)
Node.js Node.js
Runs on Mobile phones Server side Server side
Project specific? Yes Yes No
Re-usable across projects
Storage
  • HTML5 LocalStorage
  • Cordova storage plugins
  • Core Data (iOS)
  • SQLite (Android)
  • ..more
  • MongoDB
  • Redis
  • MongoDB
  • Redis
  • Integrate with external databases

Client SDKs & APIs

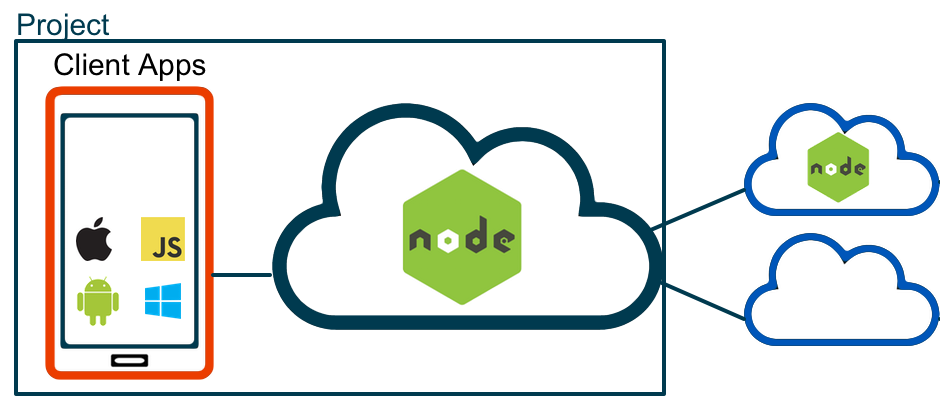

Client SDKs

The client SDK is used to build logic which runs on the mobile phone device. Typically, developers will build user interface manipulation on the client device, and use the $fh.cloud SDK to integrate with the server-side logic they have built.

Client SDKs available

Here's a quick description of the different supported client-side technologies, along with the tooling developers can expect to use with each.
Javascript Android iOS .NET
Technology/Language Apache Cordova, Appcelerator & other web Java Objective C & Swift .net, Xamarin
Build farm support Yes Yes Yes No
Dependency system NPM
(Usage optional)
Gradle
(Usage optional)
CocoaPods
(Usage optional)
Auto-init
Does the SDK initialize itself automatically?
Yes No (Call $fh.init manually)
Config file
Each SDK needs this file to tell it how to initalise

www
 |--fhconfig.json


$PROJECT
 |--fhconfig.plist


assets
 |--fhconfig.properties


$PROJECT
 |--$PROJECT.Shared
     |--fhconfig.json


Available APIs

What APIs are available on what platforms?

$fh.cloud
Call a cloud app & execute server-side logic
Yes Yes Yes Yes
$fh.init
initialize the SDK
Yes
(But happens automatically)
Yes Yes Yes
$fh.sync Yes Yes Yes Yes
$fh.push
Register & receive device-level push notifications
Yes Yes Yes Yes
$fh.auth Yes Yes Yes Yes
$fh.sec Yes No (Native alternatives exist)
$fh.hash Yes No (Native alternatives exist)
$fh.forms Yes No No No

JavaScript Client SDK

Client JS SDK

Here are some of the most frequently used JavaScript client SDKs. The full list is available, along with examples for other client technologies (Java, Swift, etc) by reading the client API documentation

Function Code snippet
$fh.cloud

$fh.cloud({
  path: "/somePath",
  method: "POST|GET|PUT|DELETE", // optional - default GET
  contentType: "application/json", // optional - default shown
  data: { "username": "testuser"}, // optional - request body
  timeout: 60000 // optional - default shown
}, function(res) {
  // Success - your response will be in the "res" variable
}, function(msg,err) {
  // Failure
});
$fh.push Remember to first set
one
,
two
,
three
in
fhconfig.json
.

  // Registers the app for push notifications.
  $fh.push(function(e) {
      // your push message will be in `e.alert`
  }, function() {
    // successfully registered
  }, function(err) {
    // handle errors
  }, { // this next param is optional!
    alias: "user@example.com", // register the device with a unique user identifier. Allows pushing to single users
    categories: ["Curling", "Hurling"] // filter only certain categories of message to receive
  });

$fh.sync initialize the sync service - call this first.

$fh.sync.init({
  "sync_frequency": 10, // How often to check for new data in seconds (default shown).
  // .. many more options available
});

Then, tell the sync service what dataset(s) to manage. Here, we're registering a dataset called
shopping
. The Options, Query Params and Metadata can just be empty objects
{}
, but they need to be provided in order.

// Manage a dataset called `shopping`
// Options can be provided to override what was provided at init time
// Query params can be provided which get passed to the server, to filter the dataset retrieved.
// Metadata about this dataset can also be provided, which also gets passed to the serverside.
$fh.sync.manage('shopping', {/*options*/}, {/*query params*/}, {/* metadata */}, function(){
  // we've registered successfully
});
Now that we've registered a dataset, we need to listen to sync events. It's here we'll trigger UI updates to reflect our changes.

$fh.sync.notify(function(event) {
  var dataset_id = event.dataset_id; // if you are managing multiple datasets, it'll be useful to know which this event relates to
  // The notification message code we are responding to
  switch(event.code){
    case 'sync_complete':
    case 'local_update_applied':
      // at this point, it might make sense to do a list operation to update the UI using $fh.sync.doList (see below)
    case 'remote_update_failed':
      // There was an issue updating on the serverside - handle the error in event.message
    default:
      // there many other notification codes: client_storage_failed, sync_started, offline_update, collision_detected, remote_update_applied,
      // local_update_applied, delta_received, record_delta_received, sync_failed
  }
});
Now that we know what events are important to trigger UI update events, let's see what a list operation looks like. This operation does not always trigger a serverside call, so can return very fast with data from the local store. Let's do a list operation on our shopping list dataset.

$fh.sync.doList('shopping', function(res) {
  /* where res will be
  {
    '1234' : { // where 1234 is the UID of the record
      hash : '1bd55262212c4ec2ac6ef20d8c8b03b3', // an MD5 hash of the record
      data : { name : "Oranges" } // the actual record data
    },
    // ... and potentially more records
  }
  */
});
We can also create records in our shopping dataset.

$fh.sync.doCreate('shopping', { name : "Tomatoes" }, function(res) {
  // create was successful
});
Update, read and delete operations are similar, we just need to provide a record UID after the dataset name:

$fh.sync.doUpdate('shopping', 1234, {name : "Grapes"}, function(){/*success*/});
$fh.sync.doRead('shopping', 1234, function(){/*success*/});
$fh.sync.doDelete('shopping', 1234, function(){/*success*/});
$fh.auth Remember to first set
one
,
two
,
three
in
fhconfig.json
.

  // Registers the app for push notifications.
  JavaScript
  // LDAP or Platform User Example
  $fh.auth({
    "policyId": "myLDAP", // UD of an auth policy configured in Admin->Auth Policies
    "clientToken": "yourAppId", // get this by doing $fh.getFHParams().appid
    // When using with Platform or LDAP login:
    "params": { // the parameters associated with the requested auth policy
      "userId": "joe@bloggs.com",
      "password": "password"
    }
  }, function (res) {
    var sessionToken = res.sessionToken; // An identifier for this session
    var authResponse = res.authResponse; // Auth info returned from the auth service - if any
  }, function (msg, err) {
    // something as gone wrong. If err.message === "user_purge_data" or "device_purge_data",
    // the user has been flagged for erasing
  });

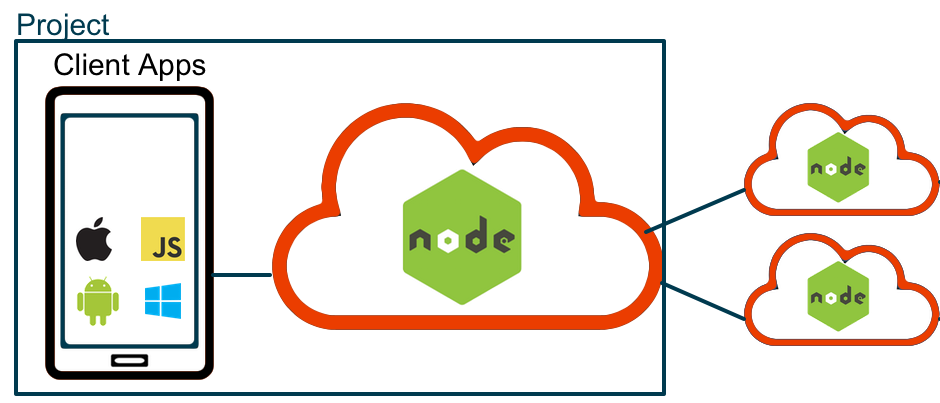

Node.js Cloud & mBaaS Service SDK

Client JS SDK As we mentioned above, the cloud application is used for server-side business logic specific to a project.
The mBaaS Services are re-usable components which these Cloud Apps talk to. Both are written using a server-side JavaScript technology called Node.js. The Node.js SDK is published to NPM (Node's dependency management solution) as fh-mbaas-api. You can include it in your cloud apps & mBaaS Services by doing the following:
var $fh = require('fh-mbaas-api');

Some of the most common Cloud API calls follow, but you can see the full list by visiting our Cloud API documentation.

Function Code snippet
$fh.service Call another mBaaS Service. Can be used to call cloudapp-to-service, or service-to-service.

  $fh.service({
    "guid" : "0123456789abcdef01234567", // The 24 character unique id of the service
    "path": "/hello", //the path part of the url excluding the hostname - this will be added automatically
    "method": "POST",   //all other HTTP methods are supported as well. for example, HEAD, DELETE, OPTIONS
    "params": { "hello": "world" }, // request params
    "timeout": 60000, // optional timeout - default shown
    "headers" : {} // optional request headers
  }, function(err, body, res) {
    // check err for an error condition - otherwise, the response is in 'body'
  });
$fh.cache Cache data in the redis key-value store.

  var myFavourite = { type : "apples" }; // note JSON values need to be stringified before saving
  $fh.cache({
    act : "save", key : "favouriteFruit", value : JSON.stringify(myFavourite), expire : 60
  }, function(err, res){
    // check for err - otherwise cache save succeeded.
  });
  // then read back your value
  $fh.cache({
    act : "load", key : "favouriteFruit"
  }, function(err, res){
    console.log(JSON.parse(res));
    // res will be { type : "apples " }
  });

$fh.db Store data in the platform MongoDB.
You can also use the MongoDB Node.js Driver directly, but depending on your version of the platform, you may need to "upgrade" your database.

  $fh.db({
    act : "create", type : "fruit", fields : { name : "apples", price : 10.99 }
  }, function(err, data){ /* check for err - otherwise save succeeded. `data.guid` is the newly created id. */ );
  // now read back an item
  $fh.db({
    act : "read", type : "fruit", guid : "4e563ea44fe8e7fc19000002"
  }, function(err, data){
    /* Data will be:
    {
      fields : { name : "apples", price : 10.99 },
      guid : "4e563ea44fe8e7fc19000002",
      type : "fruit"
    } */
  });
  // list all fruit
  $fh.db({
    act : "list", type : "fruit"
  }, function(err, listResult){ /* listResult.fields contains an array of data like in the "create" example */ });
  // now update the price
  $fh.db({
    act : "update", type : "fruit", guid : "4e563ea44fe8e7fc19000002", fields : { price : 11.99 } // only the price will change
  }, function(err, updateResult){ /* updateResult is like the "create" example above */ });
  // then delete the row
  $fh.db({
    act : "delete", type : "fruit", guid : "4e563ea44fe8e7fc19000002"
  }, function(err, deletedEntry){ /* deletedEntry is like the "create" example above */ });
